How to Extend WiFi for the Outdoor Wireless Security Camera

How to Extend WiFi for the Outdoor Wireless Security Camera, You’re looking to boost the Wi-Fi signal for your outdoor security camera. Here’s a breakdown of effective methods. Extending WiFi coverage to support an outdoor wireless security camera requires ensuring a strong and stable signal in the camera’s location. Here are practical methods to achieve this:

Table of Contents

1. Wi-Fi Range Extender:

• How it works: A Wi-Fi extender rebroadcasts your existing Wi-Fi signal, effectively increasing its range. Place it midway between your router and the camera.

• Pros: Relatively inexpensive and easy to set up.

• Cons: Can sometimes reduce overall network speed. Choose an outdoor-rated extender for weather protection.

2. Mesh Wi-Fi System:

• How it works: Uses multiple units (nodes) placed around your home to create a seamless Wi-Fi network with wider coverage.

• Pros: Provides strong, consistent signal throughout your property, ideal for larger areas.

• Cons: More expensive than a range extender.

3. Powerline Adapters:

• How it works: Uses your home’s electrical wiring to transmit data. Connect one adapter to your router and another near the camera, then connect the camera to the second adapter via Ethernet. Some powerline adapters also have a Wi-Fi access point built-in.

• Pros: Can bypass Wi-Fi dead zones and provide a stable connection.

• Cons: Performance can vary depending on your home’s wiring.

4. Reposition Your Router:

• How it works: Moving your router to a more central location can improve signal strength throughout your home, including outdoors.

• Pros: Free and simple to try.

• Cons: May not be feasible depending on your home’s layout.

5. Upgrade Your Router’s Antenna:

• How it works: Some routers allow you to replace the antennas with higher-gain ones that transmit a stronger signal.

• Pros: Can significantly improve range.

• Cons: Not all routers have detachable antennas.

6. Consider a Wired Connection:

• How it works: If possible, connecting your camera directly to your router with an Ethernet cable provides the most reliable connection.

• Pros: Eliminates Wi-Fi interference and provides the best performance.

• Cons: Requires running a cable, which may not be practical in all situations.

Important Tips:

• Reduce Interference: Keep your router away from objects that can interfere with Wi-Fi signals, such as microwaves and metal objects.

• Update Firmware: Ensure your router and camera have the latest firmware updates for optimal performance.

• Check Camera Placement: Avoid placing the camera behind walls or other obstructions that can weaken the signal.

Alternative

Extending WiFi coverage to support an outdoor wireless security camera requires ensuring a strong and stable signal in the camera’s location. Here are practical methods to achieve this:

1. Position the Router Strategically

• Centralize Location: Place the router near a window or wall closest to the camera’s location.

• Elevate the Router: Position the router on a high shelf or wall mount to reduce interference.

2. Use a WiFi Extender or Repeater

• Install Near the Camera: Place the extender halfway between the router and the camera for the best signal boost.

• Match Frequency Bands: Ensure the extender supports the same frequency bands (e.g., 2.4GHz or 5GHz) as the camera.

3. Install a Powerline Adapter with WiFi

• Leverage Electrical Wiring: Powerline adapters use your home’s electrical wiring to transmit internet signals.

• Place One Unit Near the Router: Connect the first adapter to your router and plug it into a power outlet.

• Place the Second Unit Outdoors: Position the second adapter with WiFi capability near the camera.

4. Upgrade to a Mesh WiFi System

• Multiple Nodes: Install a mesh node near the outdoor camera to ensure coverage.

• Seamless Connectivity: Mesh networks automatically connect devices to the nearest node.

5. Use a Dedicated Outdoor Access Point

• Weatherproof Design: Opt for outdoor-rated access points to withstand the elements.

• Directional Coverage: Point the antenna toward the camera for focused signal delivery.

• PoE Option: Use Power over Ethernet (PoE) to provide power and internet through a single cable.

6. Upgrade the Camera’s WiFi Antenna (If Removable)

• High-Gain Antenna: Replace the built-in antenna with a higher-gain one for better signal reception.

• Omnidirectional vs. Directional: Choose an omnidirectional antenna for general coverage or a directional one for focused signal strength.

7. Check for Interference

• Avoid Obstacles: Minimize walls, trees, or metal objects between the router and the camera.

• Change WiFi Channel: Use a less congested channel to improve signal clarity.

8. Switch to a Wired Connection

• If WiFi fails, consider running an Ethernet cable to the camera or using PoE for both data and power. Outdoor-rated Ethernet cables are available to withstand harsh conditions.

9. Test Signal Strength

• Use an App: Tools like NetSpot or WiFi Analyzer can help measure signal strength and identify dead zones.

• Adjust Placement: Based on the results, reposition devices for optimal coverage.

Would you like guidance on selecting specific equipment or troubleshooting signal issues?

By considering these options, you can effectively extend your Wi-Fi range and ensure a reliable connection for your outdoor security camera.

Deploying outdoor WiFi is always necessary for deploying outdoor wireless security cameras. There are many options for extending WiFi. The optimal choice depends on the places and environments in that outdoor wireless cameras are installed.

There are two advisable solutions to extend the WiFi just around your house’s outdoor perimeter within 100 meters (300 feet). A network extension to the remote location farther than 300 feet will need a point-to-point wireless bridge.

1. Near Site WiFi Extension to the Outdoor Wireless Security Cameras (up to 100 meters or 300 feet)

It’s hard for WiFi signals to penetrate wire-filled stucco walls or stone walls. To provide strong WiFi outside for the outdoor cameras, one WiFi extender installed outdoors would avoid the stifling impact of walls on WiFi signals. There are two kinds of products—Powerline WiFi extenders and outdoor WiFi access points—to provide WiFi outside the home.

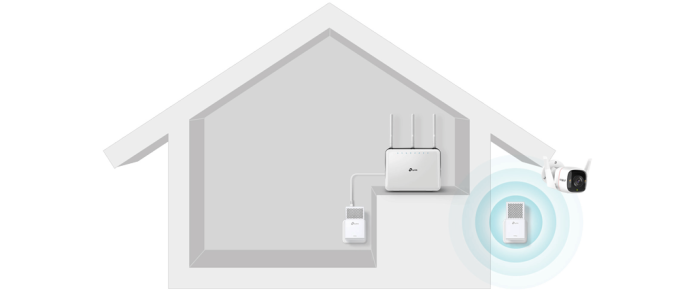

1.1 Near Site Outdoor WiFi for Cameras: Powerline WiFi Extenders

If you install your outdoor wireless camera under your eaves or in the backyard, plugging in a powerline WiFi extender around is an excellent way to solve the outdoor WiFi issues. As the powerline adapters are rated as indoor devices, a covered patio or waterproof electric box is needed to stand the harsh outdoor environments.

TP-Link TL-WPAxx series powerline wireless adapter kit is the easiest solution, providing two powerline adapters. One adapter installed indoors relays the data from the network cable to the power line. The second adapter broadcasts the WiFi signal to your cameras. Refer to the Outdoor Solution Guide for the installation tutorial and examples. The complete introduction of Powerline adapters will help you understand whether this solution is suitable for you.

1.2 Near Site Outdoor WiFi for Cameras: Outdoor WiFi Access Points

If your patio is not enclosed or the outdoor wireless cameras are installed further from your home, you may need an outdoor access point. TP-Link offers Omada EAP series omnidirectional outdoor access points for outdoor WiFi. They come with IP67 or IP65 waterproof and dustproof housing and a -30–70°C (-22–158°F) operating temperature range. They are designed to protect the outdoor access points against harsh outdoor conditions.

According to the areas of deploying outdoor cameras, there are two deployment methods. The basics are listed below. Refer to Get Outdoor WiFi with Outdoor WiFi Access Points for more details. Go to the Outdoor Solution Guide for the installation tutorial and examples.

1.2.1 WiFi Outside for Relatively Small Areas

One or two outdoor WiFi access points are deployed to connect the outdoor wireless cameras in relatively small areas. With the included passive PoE adapter, connect the Omada outdoor access points with your existing router to simultaneously provide data and power using a single Ethernet cable.

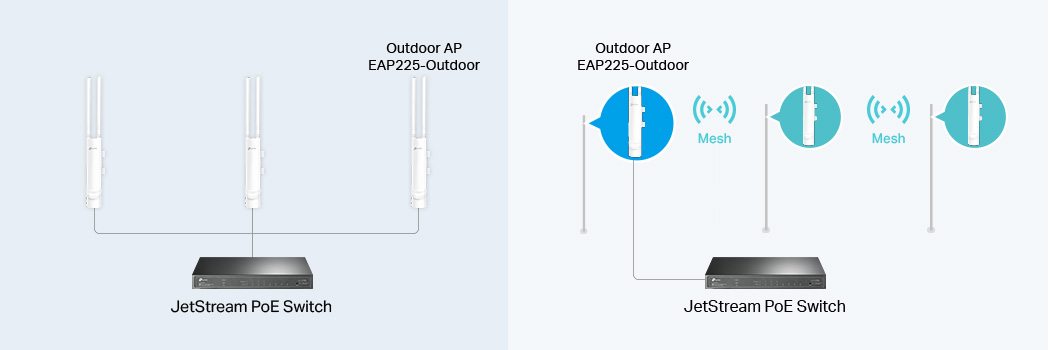

1.2.2 WiFi Outside for Relatively Large Areas

Several outdoor WiFi access points are deployed to connect outdoor wireless cameras across relatively large areas. The PoE switches or passive PoE adapters connect the Omada access points with a single Ethernet cable. Omada Mesh technology can wirelessly connect to the outdoor access points without additional cable if some access points cannot link to LAN ports. With Mesh technology, the maximum distance of extending outdoor WiFi can be multiple hundreds of meters.

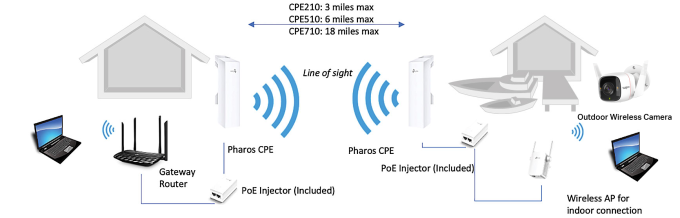

2. Remote Site Network Expansion (More than 100 m and up to 30 km)

You can use the Pharos CPE series directional outdoor wireless antennas to build a wireless bridge to expand the network for miles. It is perfect for remote surveillance systems covering vast areas. You can also broadcast the wireless signals with an additional wireless access point on the remote site when necessary.

Refer to Pharos Solution to discover what Pharos products can bring. Go to the Outdoor Solution Guide for the installation tutorial and examples of Pharos wireless products. Refer to How to Connect Your Cameras from a Long Distance for using fibers to connect remote cameras.

3. Summary of Extending WiFi to Outdoor Wireless Security Cameras

Product Types	TP-Link Powerline WiFi Extenders	TP-Link Omada Outdoor Access Points	TP-Link Pharos Outdoor Wireless Antennas
Places of Deploying Cameras	Near Site	Near Site	Remote Site
Recommended Distance	Up to 100 meters (300 feet)	• Up to 100 meters (300 feet) using a single access point • Up to multiple dozens of meters with Omada Mesh	More than 100 meters (300 feet) to up to 30 km (18 miles)
Essential Requirements	A covered patio or waterproof electric box to prevent the powerline products	Keep the Omada SDN Controller running when using Omada Mesh	–
Recommended Product Models	TL-WPA8630 KIT TL-WPA8631P KIT TL-WPA7510 KIT	EAP610-Outdoor EAP225-Outdoor EAP110-Outdoor	CPE710 CPE510 CPE210
More Details	The Complete Introduction of Powerline Adapters	Get Outdoor WiFi with Outdoor WiFi Access Points	Pharos Solution
Installation Tutorial and Examples	Outdoor Solution Guide

So, ready to install your outdoor wireless cameras and choose the best outdoor WiFi solution. Let us know your idea about the outdoor WiFi on social media with #tplinkoutdoor!
